Deploy Streamlit app on Google Kubernetes

Introduction

In my last post on deploying a machine learning pipeline in the cloud, we demonstrated how to develop a machine learning pipeline in PyCaret and deploy a trained model on Heroku PaaS as a web application built using a Streamlit open-source framework. If you haven’t heard about PyCaret before, you can read this announcement to learn more.

In this tutorial, we will use the same machine learning pipeline and Streamlit app and demonstrate how to containerize and deploy them onto Google Kubernetes Engine.

By the end of this tutorial, you will be able to build and host a fully functional containerized web app on Google Kubernetes Engine. This web app can be used to generate online predictions (one-by-one) and predictions by batch (by uploading a CSV file) using a trained machine learning model. The final app looks like this:

What you will learn in this tutorial

What is a Container, what is Docker, what is Kubernetes, and what is Google Kubernetes Engine?

Build a Docker image and upload it onto Google Container Registry (GCR).

Create a cluster on GCP and deploy a machine learning app as a web service.

See a web app in action that uses a trained machine learning pipeline to predict new data points in real time.

In the past, we have covered containerization using docker and deployment on cloud platforms like Azure, GCP and AWS. If you are interested in learning more about those, you can read the following tutorials:

Toolbox for this tutorial

PyCaret

PyCaret is an open-source, low-code machine learning library in Python that is used to train and deploy machine learning pipelines and models into production. PyCaret can be installed easily using pip.

# install pycaret pip install pycaret

Streamlit

Streamlit is an open-source Python library that makes it easy to build beautiful custom web-apps for machine learning and data science. Streamlit can be installed easily using pip.

# install streamlit
pip install streamlit

Google Cloud Platform

Google Cloud Platform (GCP), offered by Google, is a suite of cloud computing services that runs on the same infrastructure that Google uses internally for its end-user products, such as Google Search, Gmail and YouTube. If you do not have an account with GCP, you can sign-up here. If you are signing up for the first time you will get free credits for 1 year.

Let’s get started

Before we get into Kubernetes, let’s understand what a container is and why we would need one?

Have you ever had the problem where your code works fine on your computer but when a friend tries to run the exact same code, it doesn’t work? If your friend is repeating the exact same steps, he or she should get the same results, right? The one-word answer to this is the environment. Your friend’s environment is different than yours.

What does an environment include? → A programing language such as Python and all the libraries and dependencies with the exact versions used when the application was built and tested.

If we can create an environment that we can transfer to other machines (for example your friend’s computer or a cloud service provider like Google Cloud Platform), we can reproduce the results anywhere. Hence, a container is a type of software that packages up an application and all its dependencies so the application runs reliably from one computing environment to another.

What’s Docker then?

Docker is a company that provides software (also called Docker) that allows users to build, run and manage containers. While Docker’s container are the most common, there are other less famous alternatives such as LXD and LXC that also provide container solutions.

Now that you understand containers and docker specifically, let’s understand what Kubernetes is all about.

What is Kubernetes?

Kubernetes is a powerful open-source system developed by Google back in 2014, for managing containerized applications. In simple words, Kubernetes is a system for running and coordinating containerized applications across a cluster of machines. It is a platform designed to completely manage the life cycle of containerized applications.

Features

Load Balancing: Automatically distributes the load between containers.

Scaling: Automatically scale up or down by adding or removing containers when demand changes such as peak hours, weekends, and holidays.

Storage: Keeps storage consistent with multiple instances of an application.

Self-healing Automatically restarts containers that fail and kills containers that don’t respond to your user-defined health check.

Automated Rollouts you can automate Kubernetes to create new containers for your deployment, remove existing containers and adopt all of their resources to the new container.

Why do you need Kubernetes if you have Docker?

Imagine a scenario where you have to run multiple docker containers on multiple machines to support an enterprise level ML application with varied workloads during day and night. As simple as it may sound, it is a lot of work to do manually.

You need to start the right containers at the right time, figure out how they can talk to each other, handle storage considerations, and deal with failed containers or hardware. This is the problem Kubernetes is solving by allowing large numbers of containers to work together in harmony, reducing the operational burden.

What is Google Kubernetes Engine?

Google Kubernetes Engine is an implementation of Google’s open source Kubernetes on Google Cloud Platform. Simple!

Other popular alternatives to GKE are Amazon ECS and Microsoft Azure Kubernetes Service.

One final time, do you understand this?

A Container is a type of software that packages up an application and all its dependencies so the application runs reliably from one computing environment to another.

Docker is a software used for building and managing containers.

Kubernetes is an open-source system for managing containerized applications in a clustered environment.

Google Kubernetes Engine is an implementation of the open-source Kubernetes framework on the Google Cloud Platform.

In this tutorial, we will use Google Kubernetes Engine. In order to follow along, you must have a Google Cloud Platform account. Click here to sign-up for free.

Setting the Business Context

An insurance company wants to improve its cash flow forecasting by better predicting patient charges using demographic and basic patient health risk metrics at the time of hospitalization.

data source

Objective

To build a web application that supports online (one-by-one) as well as batch prediction using a trained machine learning model and pipeline.

Tasks

Train, validate and develop a machine learning pipeline using PyCaret.

Build a front-end web application with two functionalities: (i) online prediction and (ii) batch prediction.

Create a Dockerfile

Deploy the web app on Google Kubernetes Engine. Once deployed, it will become publicly available and can be accessed via Web URL.

Task 1: Model Training and Validation

Training and model validation are performed in an Integrated Development Environment (IDE) or Notebook either on your local machine or on cloud. If you haven’t used PyCaret before, click here to learn more about PyCaret or see Getting Started Tutorials on our website.

In this tutorial, we have performed two experiments. The first experiment is performed with default preprocessing settings in PyCaret. The second experiment has some additional preprocessing tasks such as scaling and normalization, automatic feature engineering, and binning continuous data into intervals. See the setup code for the second experiment:

# Experiment No. 2 from pycaret.regression import * r2 = setup(data, target = 'charges', session_id = 123, normalize = True, polynomial_features = True, trigonometry_features = True, feature_interaction=True, bin_numeric_features= ['age', 'bmi'])

The magic happens with only a few lines of code. Notice that in Experiment 2 the transformed dataset has 62 features for training derived from only 6 features in the original dataset. All of the new features are the result of transformations and automatic feature engineering in PyCaret.

Sample code for model training in PyCaret:

# train model lr = create_model('lr')

Notice the impact of transformations and automatic feature engineering. The R2 has increased by 10% with very little effort. We can compare the residual plot of the linear regression model for both experiments and observe the impact of transformations and feature engineering on the heteroskedasticity of the model.

# plot residuals of trained model plot_model(lr, plot = 'residuals')

Machine learning is an iterative process. The number of iterations and techniques used within are dependent on how critical the task is and what the impact will be if predictions are wrong. The severity and impact of a machine learning model to predict a patient outcome in real-time in the ICU of a hospital are far more than a model built to predict customer churn.

In this tutorial, we have performed only two iterations and the linear regression model from the second experiment will be used for deployment. At this stage, however, the model is still only an object within a Notebook / IDE. To save it as a file that can be transferred to and consumed by other applications, execute the following code:

# save transformation pipeline and model save_model(lr, model_name = 'deployment_28042020')

When you save a model in PyCaret, the entire transformation pipeline based on the configuration defined in the setup function is created. All inter-dependencies are orchestrated automatically. See the pipeline and model stored in the ‘deployment_28042020’ variable:

We have finished training and model selection. The final machine learning pipeline and a linear regression model is now saved as a pickle file (deployment_28042020.pkl) that will be used in a web application to generate predictions on new data points.

Task 2: Build a front-end web application

Now that our machine learning pipeline and model are ready to start building a front-end web application that can generate predictions on new data points. This application will support ‘Online’ as well as ‘Batch’ predictions through a CSV file upload. Let’s breakdown the application code into three main parts:

Header / Layout

This section imports libraries, loads the trained model and creates a basic layout with a logo on top, a jpg image and a dropdown menu on the sidebar to toggle between ‘Online’ and ‘Batch’ prediction.

Online Predictions

This section deals with the initial app function, Online one-by-one predictions. We are using streamlit widgets such as number input, text input, drop down menu and checkbox to collect the datapoints used to train the model such as Age, Sex, BMI, Children, Smoker, Region.

Batch Predictions

Predictions by batch is the second layer of the app’s functionality. The file_uploader widget in streamlit is used to upload a CSV file and then called the native predict_model function from PyCaret to generate predictions that are displayed using Streamlit’s write function.

If you remember from Task 1 above we finalized a linear regression model that was trained on 62 features that were extracted from the 6 original features. The front-end of the web application has an input form that collects only the six features i.e. age, sex, BMI, children, smoker, region.

How do we transform these 6 features of a new data points into the 62 used to train the model? We do not need to worry about this part as PyCaret automatically handles this by orchestrating the transformation pipeline. When you call the predict function on a model trained using PyCaret, all transformations are applied automatically (in sequence) before generating predictions from the trained model.

Testing the Application

One final step before we publish the application on Heroku is to test the web app locally. Open Anaconda Prompt and navigate to your project folder and execute the following code:

# test the app streamlit run app.py

Now that we have a fully functional web application, we can start the process of containerizing and deploying the app on Google Kubernetes Engine.

Task 3: Create a Dockerfile

To containerize our application for deployment we need a docker image that becomes a container at runtime. A docker image is created using a Dockerfile. A Dockerfile is just a file with a set of instructions. The Dockerfile for this project looks like this:

The last part of this Dockerfile (starting at line 23) is Streamlit specific and not needed generally. Dockerfile is case-sensitive and must be in the project folder with the other project files.

Task 4: Deploy a ML pipeline on GKE:

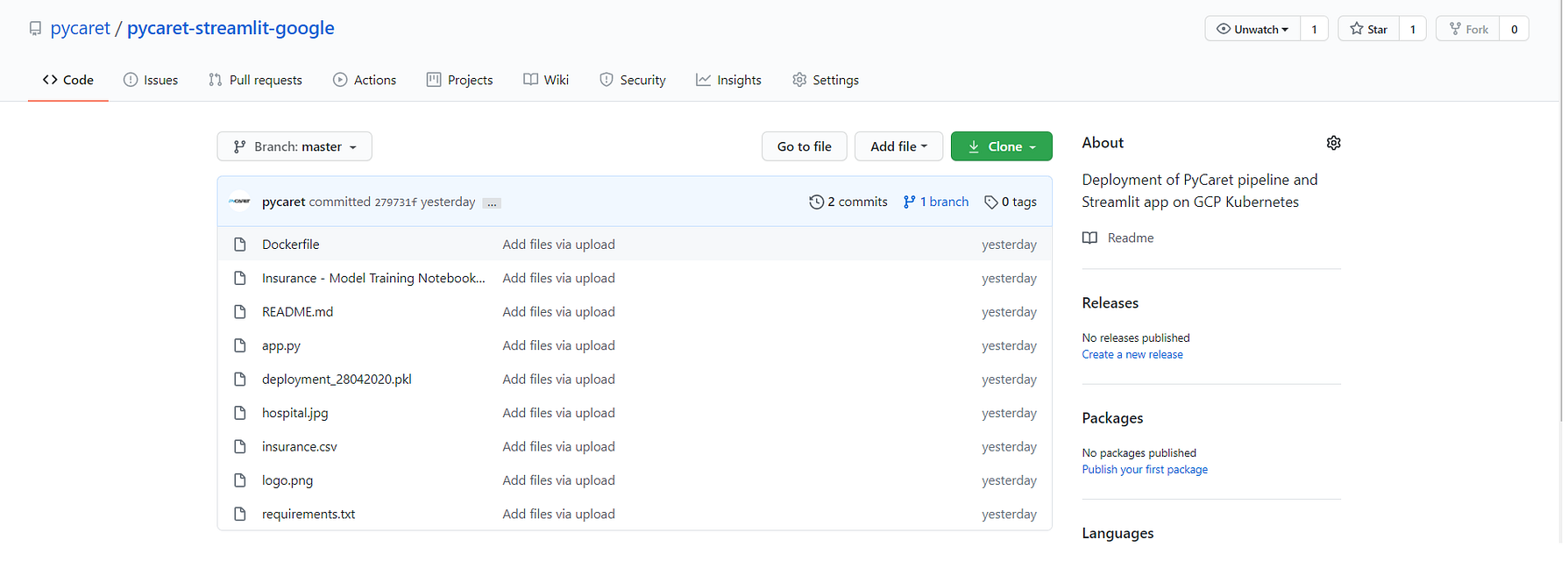

If you would like to follow along you will have to fork this repository from GitHub.

Follow through these simple 10 steps to deploy app on GKE Cluster.

Step 1: Create a new project in GCP Console

Sign-in to your GCP console and go to Manage Resources

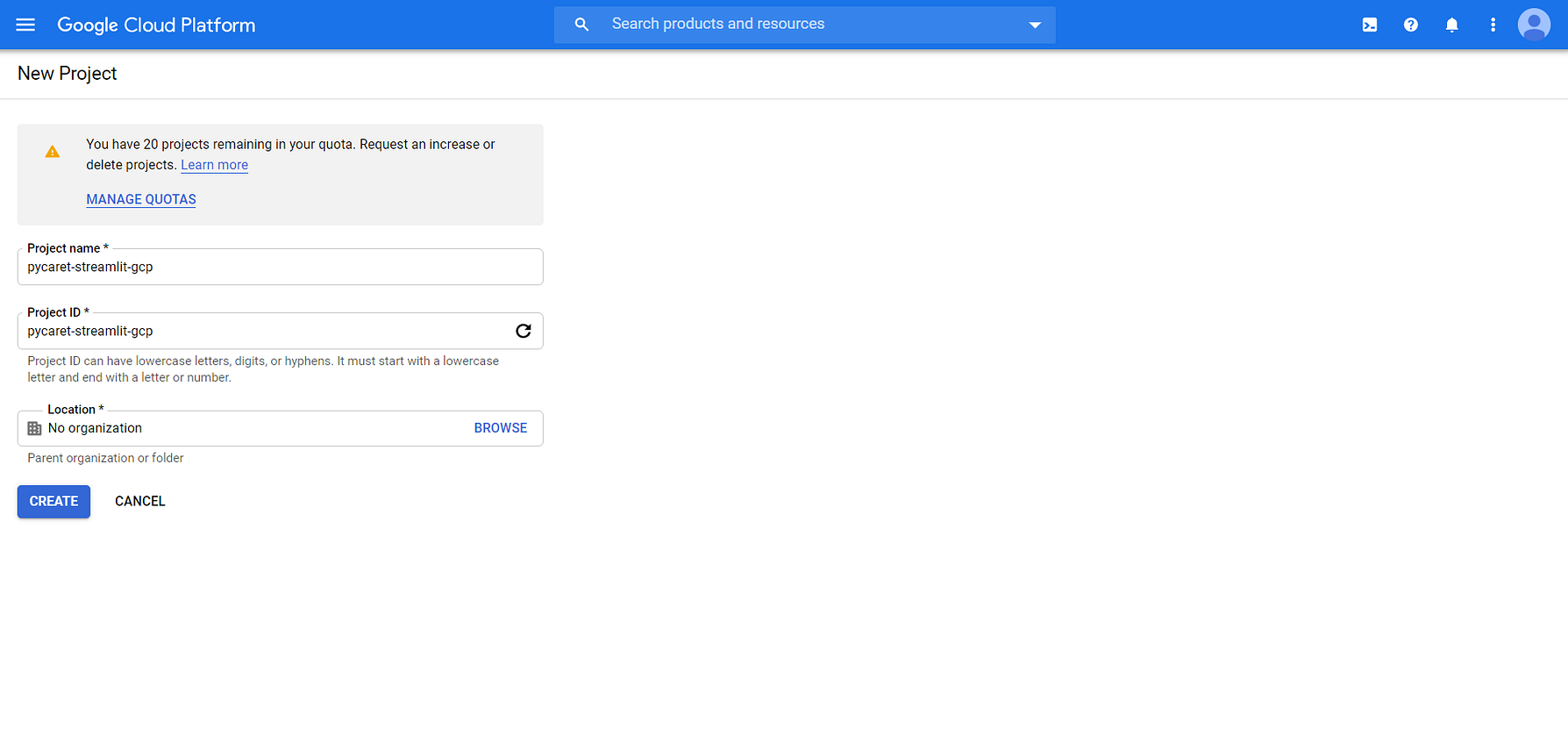

Click on Create New Project

Step 2: Import Project Code

Click the Activate Cloud Shell button at the top right of the console window to open the Cloud Shell.

Execute the following code in Cloud Shell to clone the GitHub repository used in this tutorial.

git clone https://github.com/pycaret/pycaret-streamlit-google.git

Step 3: Set Project ID Environment Variable

Execute the following code to set the PROJECT_ID environment variable.

export PROJECT_ID=pycaret-streamlit-gcp

Step 4: Build the docker image

Build the docker image of the application and tag it for uploading by executing the following code:

docker build -t gcr.io/${PROJECT_ID}/insurance-streamlit:v1 .

You can check the available images by running the following code:

docker images

Step 5: Upload the container image

Authenticate to Container Registry (you need to run this only once):

gcloud auth configure-docker

Execute the following code to upload the docker image to Google Container Registry:

docker push gcr.io/${PROJECT_ID}/insurance-streamlit:v1

Step 6: Create Cluster

Now that the container is uploaded, you need a cluster to run the container. A cluster consists of a pool of Compute Engine VM instances, running Kubernetes.

Set your project ID and Compute Engine zone options for the gcloud tool:

gcloud config set project $PROJECT_ID gcloud config set compute/zone us-central1

Create a cluster by executing the following code:

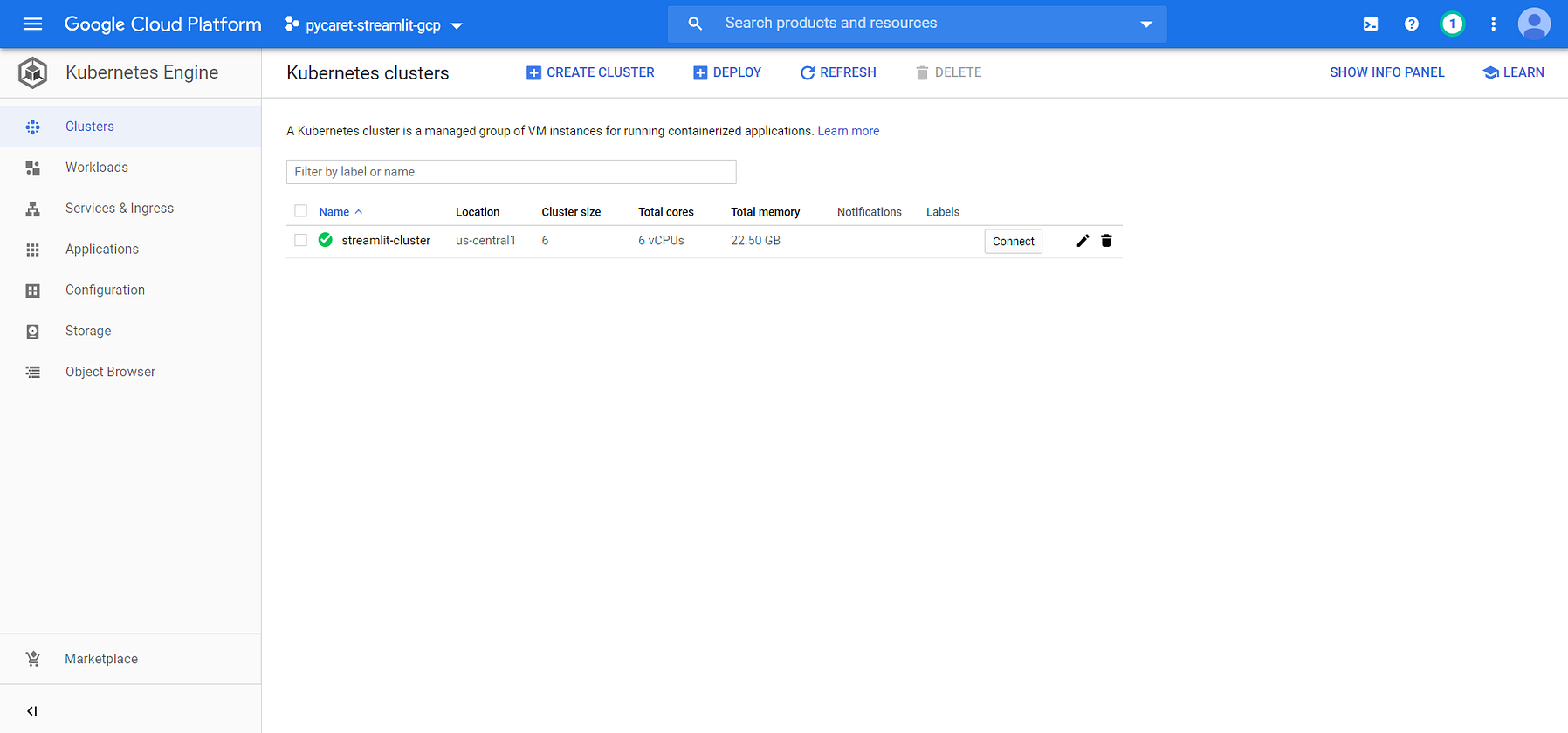

gcloud container clusters create streamlit-cluster --num-nodes=2

Step 7: Deploy Application

To deploy and manage applications on a GKE cluster, you must communicate with the Kubernetes cluster management system. Execute the following command to deploy the application:

kubectl create deployment insurance-streamlit --image=gcr.io/${PROJECT_ID}/insurance-streamlit:v1

Step 8: Expose your application to the internet

By default, the containers you run on GKE are not accessible from the internet because they do not have external IP addresses. Execute the following code to expose the application to the internet:

kubectl expose deployment insurance-streamlit --type=LoadBalancer --port 80 --target-port 8501

Step 9: Check Service

Execute the following code to get the status of the service. EXTERNAL-IP is the web address you can use in the browser to view the published app.

kubectl get service

Step 10 — See the app in action on web address

Note: By the time this story is published, the app will be removed from the public address to restrict resource consumption.

Link to GitHub Repository for this tutorial

Link to GitHub Repository for Microsoft Azure Deployment

Link to GitHub Repository for Heroku Deployment
